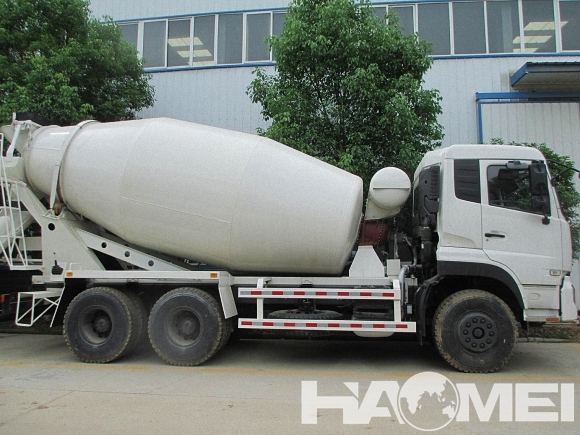

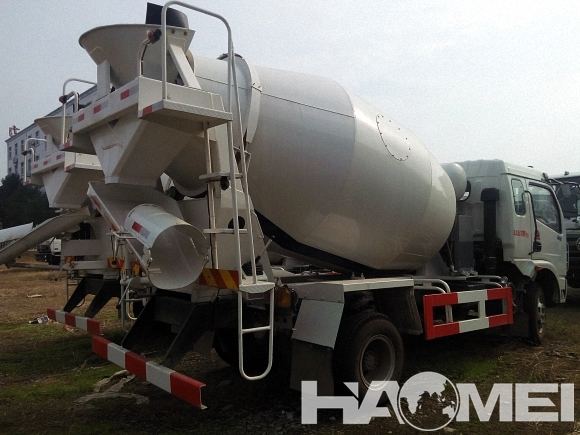

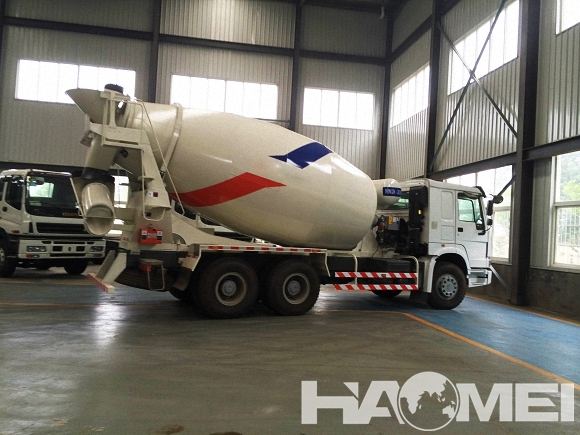

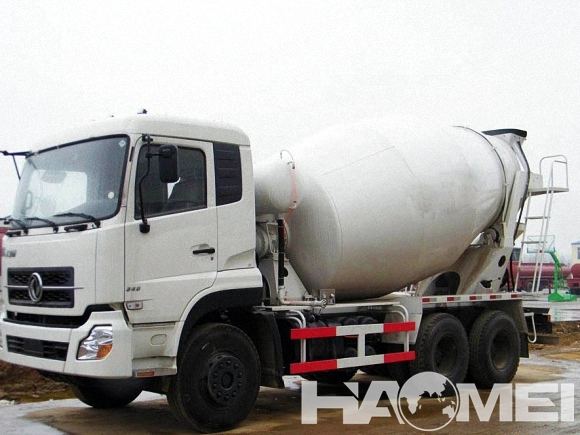

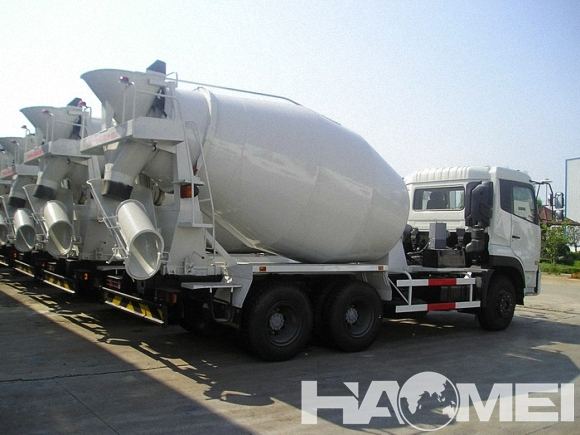

HM10-D Concrete Mixer Truck


    Mixing Capacity: 10m3


    Tank Volume: 17.5m3


    Feeding Speed: ≥3.5m³/min


    Discharging Speed: ≥3m³/min

Share with:
  • Description
  • Parameter
  • Drawing
  • Inquiry

1. The Description of HM10-D Concrete Truck Mixer:

1. Haomei Concrete Truck Mixer has a wide range of application especially for mass concreting works like Construction of Canals, Bridges, Highways, Dams, Multistoried & Industrial Buildings, Factories, and Airports for ready mixed Concrete Works.

2. Haomei Concrete Truck Mixer includes many models such as 8m3, 9m3, 10m3, 12m3, 14m3, 16m3, and any tailor-made-for-mixer-truck special chassis both at home and abroad as supporting part are available to choose.

2. The Features of HM10-D Concrete Truck Mixer:

1.Wear-resistance and long service life

2.Low material residue

3.Excellent performance and convenient operation

4.Imported original hydraulic system

Specification Unit Value

Mixing Capacity

m3 10

Tank Volume

m3 17.5

Feeding Speed



Discharging Speed

m³/min ≥3

Residual Ratio of Discharging



Water Supply System


Air pressure

Water Tank Volume

L 300

Overall Dimension



Chassis Model





φ430 Monolithic dry type

 Min Ground Clearance

 mm  314

 Max Speed

 km/h  90

 Engine Max Output Power

 kw  276

 Emission Standard

 mm  Euro Ⅲ

Rated Load

 kg  13500

Overall Weight

kg  25000


mm  3225+1350
