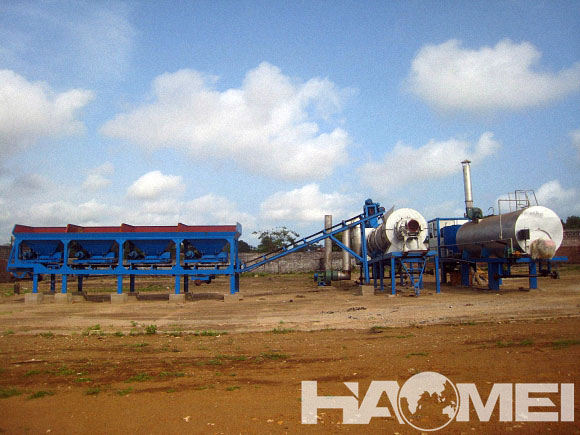

DHB20 Drum Asphalt Mixing plant

Productivity (under standard conditions): 20t/h
Oil consumption (under standard conditions):5.5-7kg/t
Operation mode: manual control
Aggregate Bin: 3

Chat Online Send Email Product Video

Share with:

Description
Parameter
Drawing
Inquiry

The Description of DHB20 Drum Asphalt Mixing plant:

1、Single hopper

2、Titled belt feeding conveyor

3、Drying drum assembly(mobile)

Components 1). Dryer drum 2). Elevator 3). Drawing fan system 4). Mixture storage silo

4、Oil burning system:A China brand diesel oil burner; a set of oil pipelines and oil pump;

5、Asphalt supply pipes Components: an asphalt pump; matched asphalt pipes;

6、Electric control system (1)Components: Electric operation platform and the cables from operation platform to the plant. (2)Characteristics: In electric control system, it is equipped with operation platform, main electrical parts with interlock and two-grade protecting device; manual control device, main motor current display, finished mixture temperature display, frequency conversion timing for cold aggregate and asphalt is applied on operation platform; convenient and easy for operation.

Specification	Unit	Value
Productivity (under standard conditions)	t/h	20
Oil consumption (under standard conditions)	kg/t	5.5-7
Operation mode		manual control
Aggregate Bin	Quantity	3
Figure dimension	m	(length×width ×height): 15×15×6
Total installed power	kw	26.7
