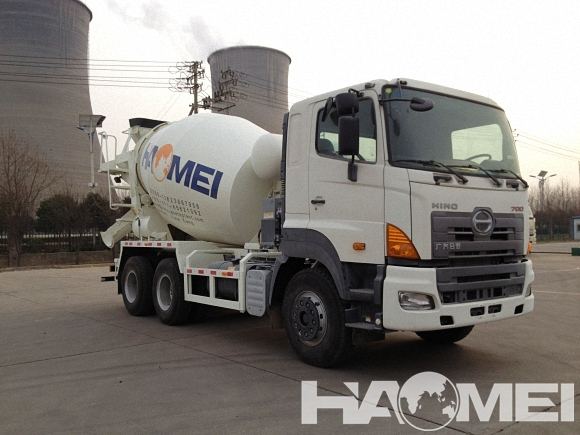

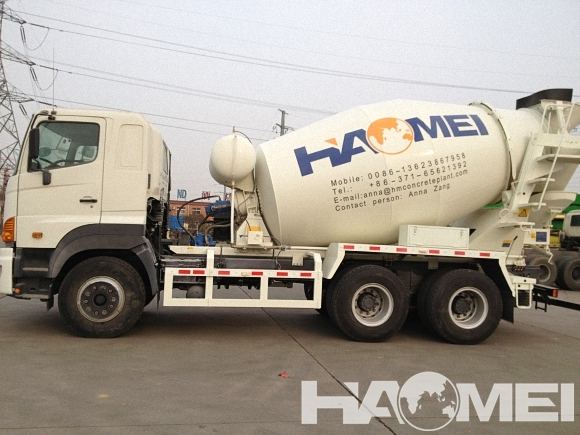

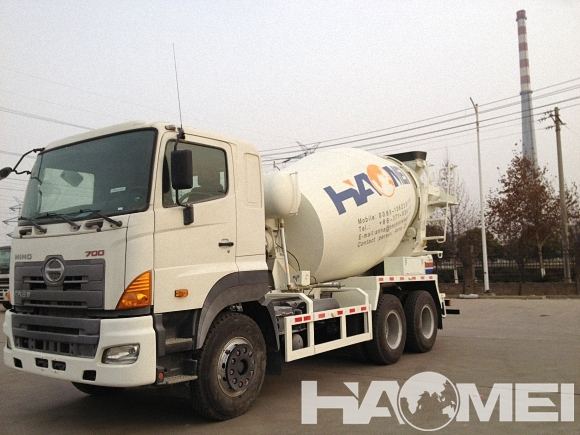

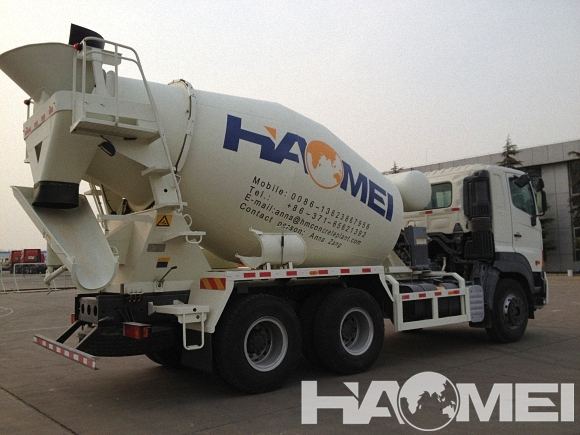

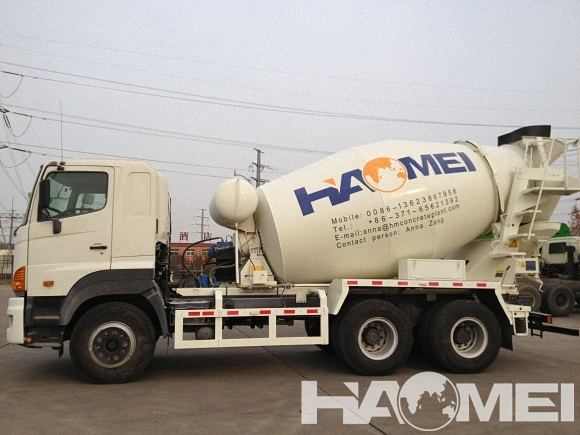

HM14-D Concrete Mixer Truck

  •

    Mixing Capacity: 16m3

  •

    Tank Volume: 24.1m3

  •

    Feeding Speed: ≥3.5m³/min

  •

    Discharging Speed: ≥3m³/min

Share with:
  • Description
  • Parameter
  • Drawing
  • Inquiry

The Classification of HM14-D Concrete Truck Mixer:

1. According to the shipment of concrete moisture in the concrete mixer truck, there can be divided into wet material type, material type and semi-dry material type three concrete mixer truck.

2. Wet material concrete mixer truck can ship the concrete by concrete batching plant produced or the aggregate (sand and gravel), cement and water, during transport, wet material concrete mixer truck trough slowly stirring constantly to prevent concrete initial and segregation during transport.

3. From the production to the casting of concrete, the period can not be more than 1.5h to avoid concrete setting.

4. Dry material concrete mixer truck can pour the aggregate and cement directly into the car's agitation barrel.

5. During transport dry material into barrel is stirred when the mixer truck arrive at the construction site, then add water stirring to complete the concrete.

6. Semi feed mixing truck in the shipment of concrete aggregate and cement which is prepared according to the ratio, and contain some water, when the mixer truck reach the construction site or at the construction site add water and stir.

Specification Unit Value

Mixing Capacity

m3 14

Tank Volume

m3 20.1

Feeding Speed

m³/min

≥3.5

Discharging Speed

m³/min ≥3

Residual Ratio of Discharging

%

≤0.5

Water Supply System

/

Air pressure

Water Tank Volume

L 400

Overall Dimension

mm

10300*2496*3920

Chassis Model

/

HOWO

Clutch

φ

φ430 Monolithic dry type

 Min Ground Clearance

 mm  245

 Max Speed

 km/h  90

 Engine Max Output Power

 kw  340

 Emission Standard

 mm  Euro Ⅲ

Rated Load

 kg  16000

Overall Weight

kg  31000

Wheelbase

mm  1800+3200+1350
