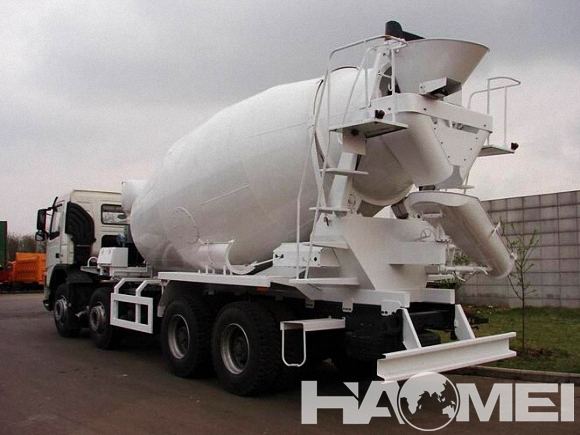

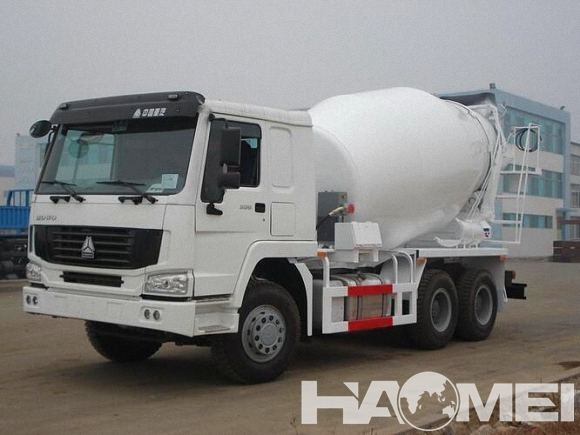

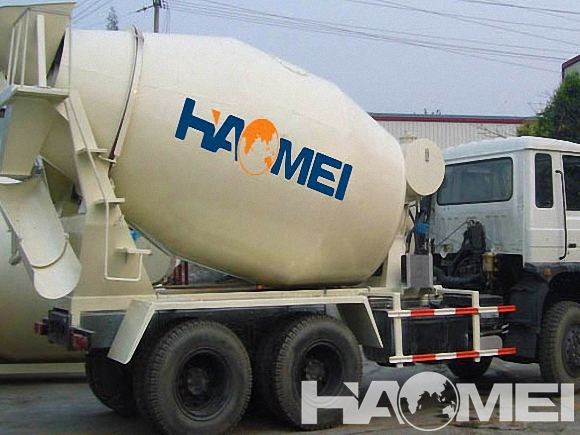

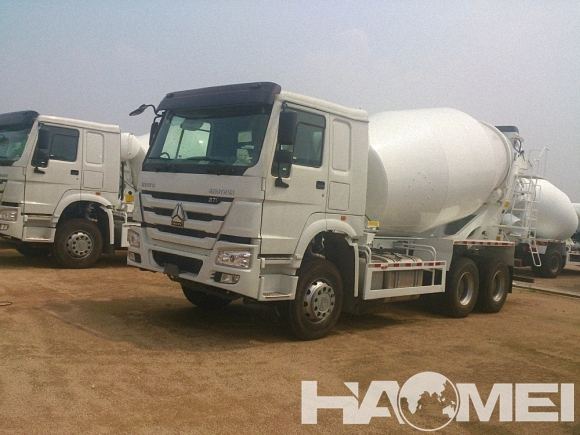

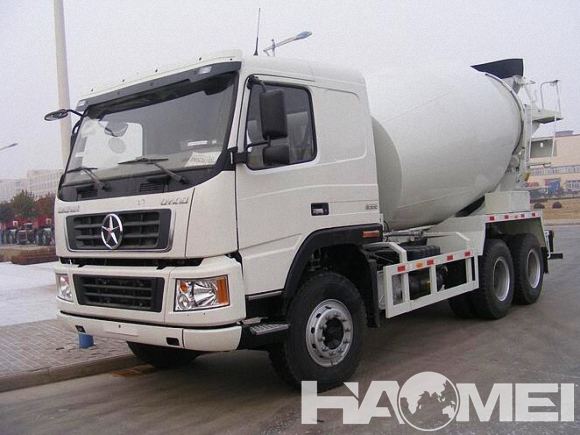

HM8-D Concrete Mixer Truck

Mixing Capacity: 8m3
Tank Volume: 12.8m3
Feeding Speed: ≥3m³/min
Discharging Speed: ≥1.5m³/min

Share with:

Description
Parameter
Drawing
Inquiry

1. The Components of HM8-D Concrete Truck Mixer

1. Concrete truck mixer is composed of the chassis, tanks, piping systems, automatic unloading devices and other components.

2. Mainly composed of the barrel tank, the tank to the upper end of the inlet, fluidized bed, a feeding tube assembly, intake manifold, and other accessories.

3. Pipeline system: Front and after the bulk cement trucks, each with a gas chamber, while open the machine at the same time and individually controlled by valve to realize the function respectively.

2. The Features of HM8-D Concrete Truck Mixer

1. High-intensity drum material

2. Optimized mixing blades

3. Low material residue

4. High-quality parts, reliable running

5. Imported original hydraulic system

Specification	Unit	Value
Mixing Capacity	m3	9
Tank Volume	m3	12.8
Feeding Speed	m³/min	≥3
Discharging Speed	m³/min	≥1.5
Residual Ratio of Discharging	%	≤0.5
Water Supply System	/	Air pressure
Water Tank Volume	L	260
Overall Dimension	mm	871524963800
Chassis Model	/	HOWO
Clutch	φ	φ430 Monolithic dry type
Min Ground Clearance	mm	314
Max Speed	km/h	90
Engine Max Output Power	kw	276
Emission Standard	mm	Euro Ⅲ
Rated Load	kg	13500
Overall Weight	kg	25000
Wheelbase	mm	3225+1350
