YHZS25 Mobile Concrete Batching Plant

Productivity: 25m3/h
Overall Power: About 55kw
Discharge Height: 3.8m
Power Source: 380/50 (V/ HZ)

Share with:

Description
Parameter
Drawing
Inquiry

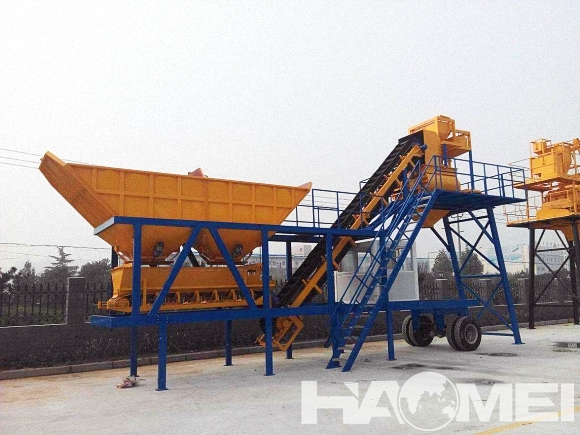

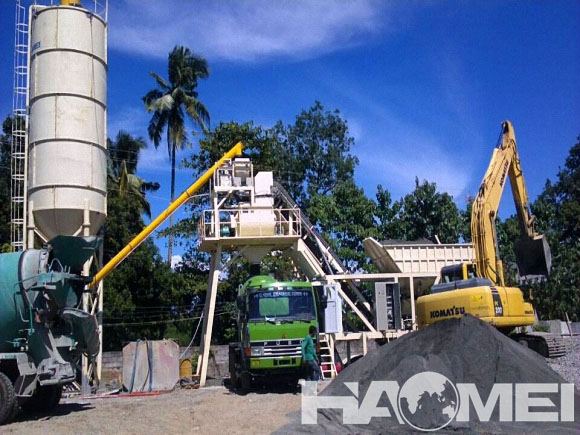

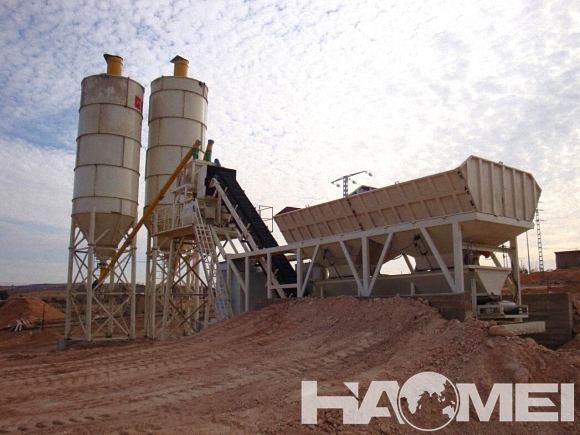

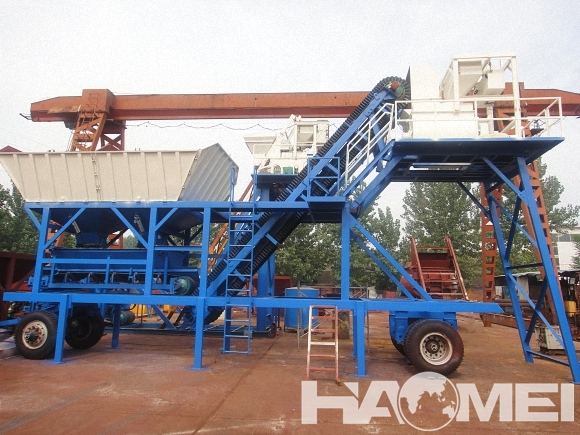

YHZS25 Mobile Concrete Batching Plant:

1. YHZS25 mobile concrete batching plant can be installed quickly on site. Composed of mixing system, batching system, transiting system, feeding system, weighing system, storage system and all the necessary equipment into together, installed on a transport chassis.

2. YHZS25 mobile concrete batching plant can be delivered to construction site in the hauling situation, then install quickly on site and get it to run without debugging.

3. Adopting new advanced technologies from overseas and domestic, accurate weighing, perfect mixing performance, fast delivery and convenient to move.

Features of YHZS25 Mobile Concrete Batching Plant:

1. High Mechanical and Electrical Integration: Feeding, weighing, mixing, conveying, discharging integrated together to equip with a complete concrete machine.

2. High Mixing Performance: The adoption of JS twin shaft compulsory concrete mixer will strengthen mixing performance, which features fast mixing speed and good sealing performance.

3. Convenient to transport: whole machine is installed on a transport chassis with wheels, which makes it convenient to transport one site to another.

Specification	Unit	Value
Productivity	m3/h	25
Weighing scale Concrete	kg	2000
Weighing scale Cement	kg	510
Weighing Scale Water	kg	150
Weighing Scale Liquid Additive	kg	15
Overall Power	kw	About 55
Power Source	V/ HZ	380/50
Discharge Height	m	3.8
Overall Weight	t	13(cement silo not included)
Trail speed	km/h	≤40
Specification(LxWxH) During work	m	17x3.6x8.2
During transportation	m	17.6x2.4x4.35
