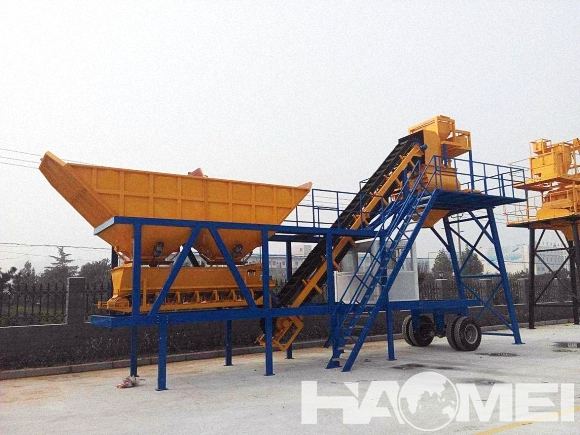

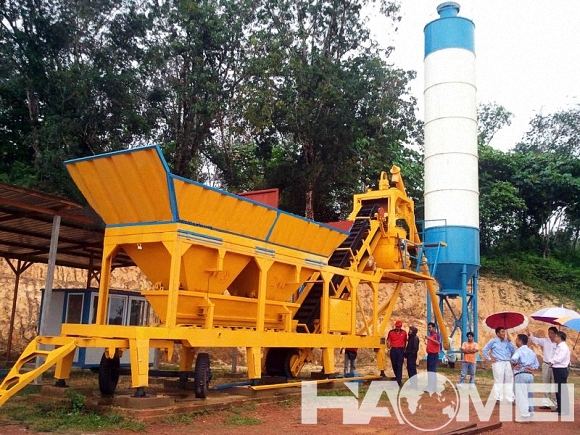

YHZS35 Mobile Concrete Batching Plant

Productivity: 35m3/h
Overall Power: About 70kw
Discharge Height: 3.8m
Power Source: 380/50 (V/ HZ)

Share with:

Description
Parameter
Drawing
Inquiry

Description of YHZS35 Mobile Concrete Batching Plant:

1. YHZS35 mobile concrete batching plant is made up of feeding system(feeding hopper), weighing system, conveying system, mixing system, discharging system and other accessories to form a complete mixing equipment.

2. As the small mobile concrete batching plant, yhzs35 mobile concrete batching plant is widely used in small projects, such as bridge, road, buildings, short distance railway, etc..

3. Mixing console of yhzs35 mobile concrete batching plant adopts compulsory twin shaft concrete mixer JS750, which features lifting hopper feeding.

4. The whole equipment which is assembled above steel frame which can be removed easily and conveniently.

Specification	Unit	Value
Productivity	m3/h	35
Weighing scale Concrete	kg	2500
Weighing scale Cement	kg	600
Weighing Scale Water	kg	300
Weighing Scale Liquid Additive	kg	20
Overall Power	kw	About 70
Power Source	V/ HZ	380/50
Discharge Height	m	3.8
Overall Weight	t	17(cement silo not included)
Trail speed	km/h	≤40
Specification(LxWxH) During work	m	17.3x3.4x7.4
During transportation	m	17x2.4x4.34
