HZS25 Stationary Concrete Batching Plant

Productivity: 25m3/h
Capacity of Mixer: 0.5m3
Discharge Height: 3.8m
Aggregate Bin: 3

Share with:

Description
Parameter

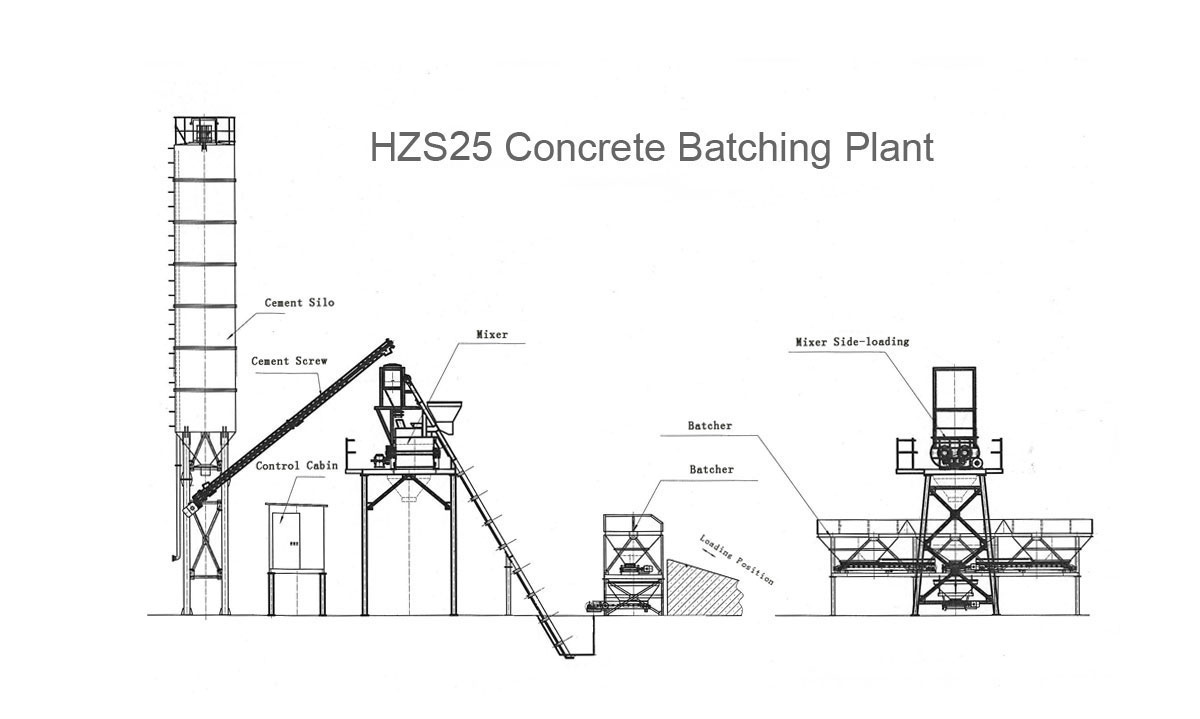

Drawing
Inquiry

1. The Description of HZS25 Stationary Concrete Batching Plant:

HZS25 stationary concrete batching plant is one of the small-sized series batching plant of HAOMEI company.It is full-automatic concrete mixing plant which is composed by feeding, batching, mixing, electrical control and steel structure components.It’s suitable for small-scale construction projects, precast yard and commercial concrete companies.

2. Short Features of HZS25 Stationary Concrete Batching Plant:

1. International popular modular compact structure

2. Adapt and apply for the most advanced technologies

3. The mixing system with excellent mixing performance

4. Main electrical components from Germany SIEMENS

5. Suitable for small-scale construction project

Specification	Unit	Value
Productivity	m3/h	25
Capacity of Mixer	m3	0.5
Discharge Height	m	3.8
Aggregate Bin	Quantity	3
Capacity of Aggregate Bin	m3	4
Max. Weighing Value of aggregate	kg	1500
Max. Weighing Value of cement	kg	300
Max. Weighing Value of water	kg	150
Max. Weighing Value of additive	kg	40
Feeding Type	/	Skip Hopper
Cement Silo	/	Optional
Cement Screw Conveyor	/	Optional
Control Mode	/	Auto/Semi control
