HZS35 Stationary Concrete Batching Plant

Productivity: 35m3/h
Capacity of Mixer: 0.75m3
Discharge Height: 3.8m
Aggregate Bin: 3

Share with:

Description
Parameter

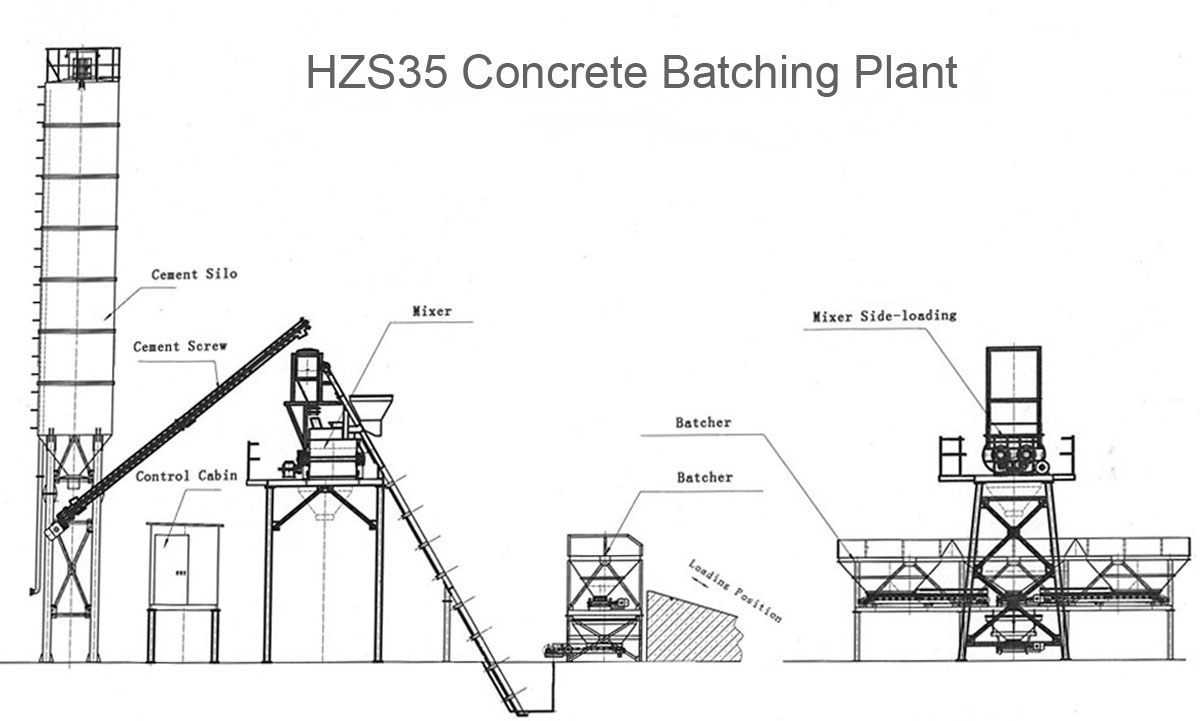

Drawing
Inquiry

1. The Description of HZS35 Concrete Batching Plant:

HZS35 concrete batching plant features a full-automatic control concrete batching plant which is composed by feeding, batching, mixing, electrical control and steel structure components. It’s widely used in road, bridge, dam, railway, highway, etc..

2. Short Features of HZS25 Concrete Batching Plant:

1. Stability and Durability: adapt and apply the most advanced technologies around the world;

2. Stationary modular compact structure, fast and easy installation.

3. Excellent mixing performance with high efficiency and high productivity

4.Excellent environmental protection, dust collection system and anti-noise design.

5. Easy operation

Specification	Unit	Value
Productivity	m3/h	35
Capacity of Mixer	m3	0.75
Discharge Height	m	3.8
Aggregate Bin	Quantity	3
Capacity of Aggregate Bin	m3	8
Max. Weighing Value of Aggregate	kg	2250
Max. Weighing Value of Cement	kg	450
Max. Weighing Value of Water	kg	300
Max. Weighing Value of Additive	kg	75
Feeding Type	/	Skip Hopper
Cement Silo	/	Optional
Cement Screw Conveyor	/	Optional
Control Mode	/	Auto/Semi control
