Your position: Home >  Product > Stationary Concrete Batching Plant

HZS90 Stationary Concrete Batching Plant


    Productivity: 90m3/h


    Capacity of Mixer: 1.5m3


    Discharge Height: 3.8m


    Feeding Type: Belt Conveyor

Share with:
  • Description
  • Parameter
  • Drawing
  • Inquiry

1. Description of HZS90 Concrete Batching Plant

HZS90 Concrete Batching Plant is with modularization structure, the concrete batching plant is easy to transport, install and debug more quickly.The driving system adopts planetary gear, the gimbals transmission shaft insures circumgyrate at the same speed

2. The Features of HZS90 Concrete Batching Plant:

1. Structural members are durable, and most electric elements adopt world famous brands.

2. Suitable for large and medium size projects, dam, road and bridge.

3. Lubrication system is equipped with over voltage warning and low oil level warning, safe and reliable

4. Low noise, low energy consumption

5. PC+PLC control system ensures the high reliability.
Specification Unit Value
Productivity m3/h 90

Capacity of Mixer

m3 1.5

Discharge Height

m 3.8

Aggregate Bin

Quantity 4

Capacity of Aggregate Bin

m3 15

Max. Weighing Value of aggregate

kg 6000

Max. Weighing Value of cement

kg 1000

Max. Weighing Value of water

kg 500

Max. Weighing Value of additive

kg 50
Feeding Type / Belt
Cement Silo / Optional
Cement Screw Conveyor / Optional
Control Mode / Auto Control

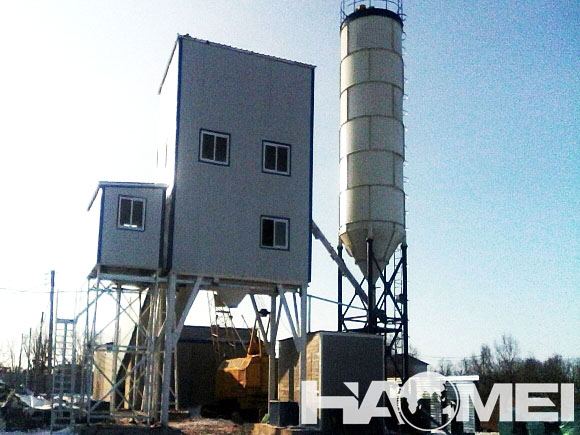

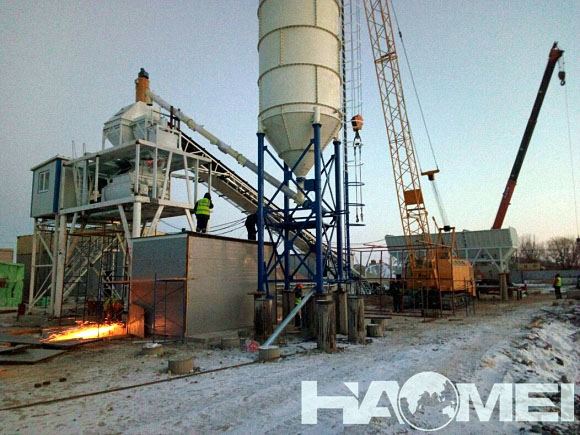

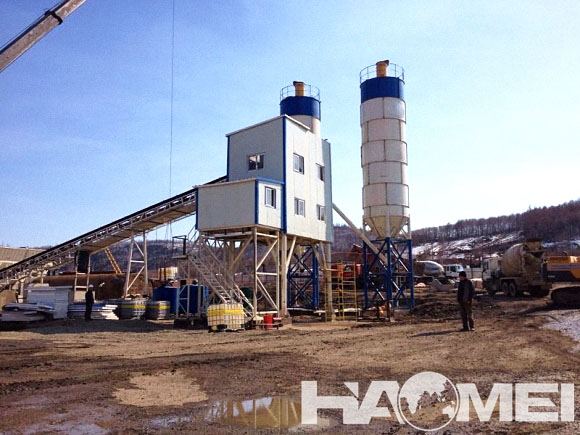

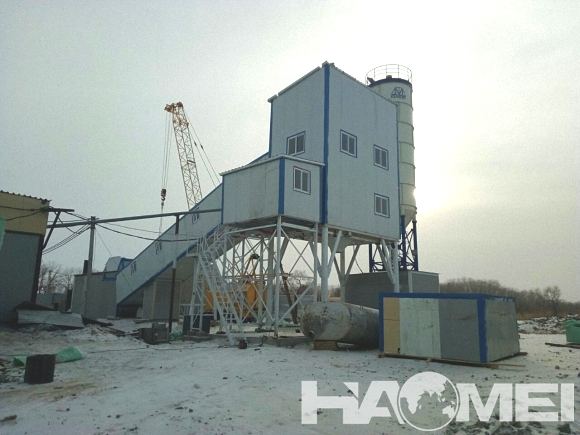

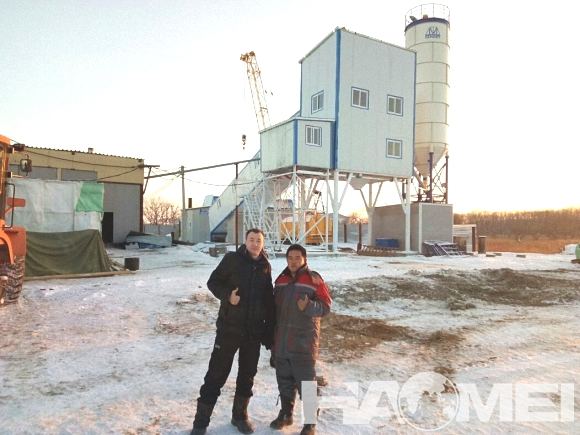

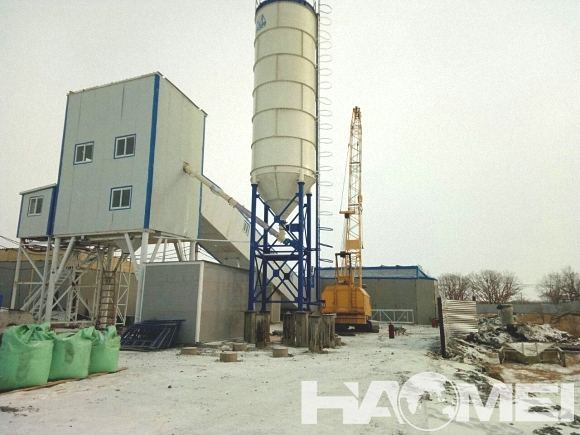

hzs90 concrete batching plant
