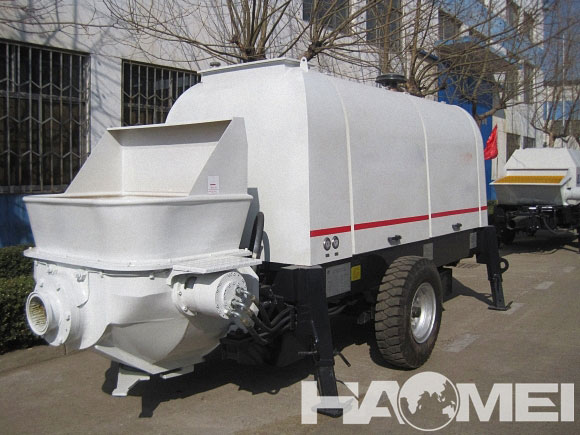

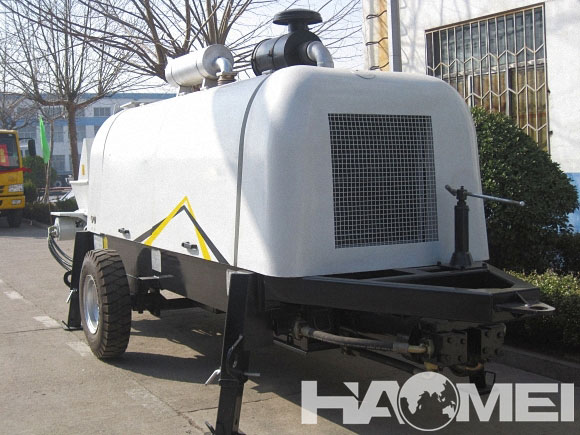

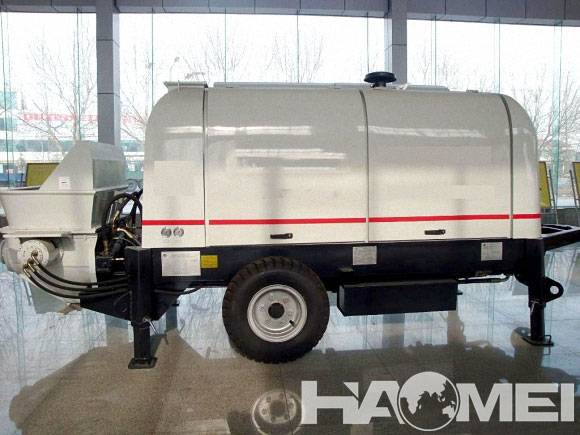

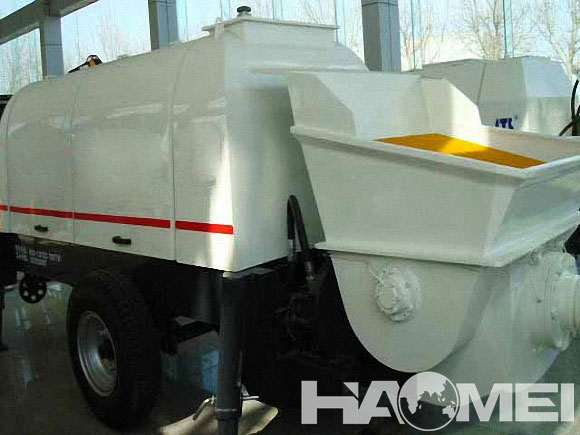

HBT60S1413-112R Trailer Concrete Pump

  •

    Theory Concrete Output(Low / High Pressure): 60m3

  •

    Concrete Pressure (Low / high pressure): 13/7.4Mpa

  •

    Hydraulic system pressure: 32Mpa

  •

    Rotation speed: 1480r/min

Share with:
  • Description
  • Parameter
  • Drawing
  • Inquiry

1. The Description of HBT60S1413-112R Trailer Concrete Pump:

HaoMei HBT60S1413-112R Trailer Concrete Pump is a kind of concrete pumping machines, including S-valve series of high-pressure concrete pumps, Z-gate-valve series of medium-pressure concrete pumps and D-butterfly-valve series of low-pressure concrete pumps. HBT series concrete pumps are mainly used to pump concrete. This concrete pumping is widely used for the construction works in civil construction, bridge construction, electric power and other energy source facilities and so on.

2. The Features of HBT60S1413-112R Trailer Concrete Pump:

1. Power system of trailer concrete pump

2. Electric control system of trailer concrete pump

3. Hydraulic system of trailer concrete pump

4. Pumping system of trailer concrete pump

5. Lubrication system of trailer concrete pump

Specification Unit Value

Theory Concrete Output(Low / High Pressure)

m3/h

60

Concrete Pressure (Low / high pressure)

Mpa

13/7.4

Hydraulic system pressure

Mpa 32

Rotation speed

r/min 1480

High / low pressure switch

  Yes

Distribution valve

S Valve

Pumping cylinder diameter/ Stroke

mm 195/1500

Main oil pump discharge

ml/r 110

Diesel engine

kw 112

Voltage/ Frequency

V/Hz

380/50

Hydraulic tank volume

L 400

Height of adding material

mm 1355

Hopper volume

m3 0.8

Total mass

kg 5800

Concrete slump

mm

120-230

Aclinic Delivery distance

m 1200

Theory vertical pumping height

m 250

Dimension: L*W*H

mm

6240*2110*2550
