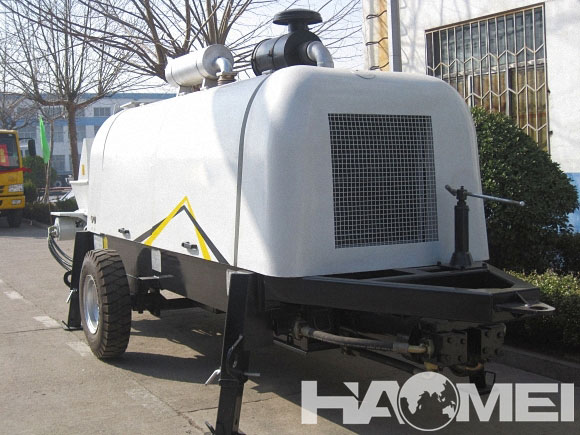

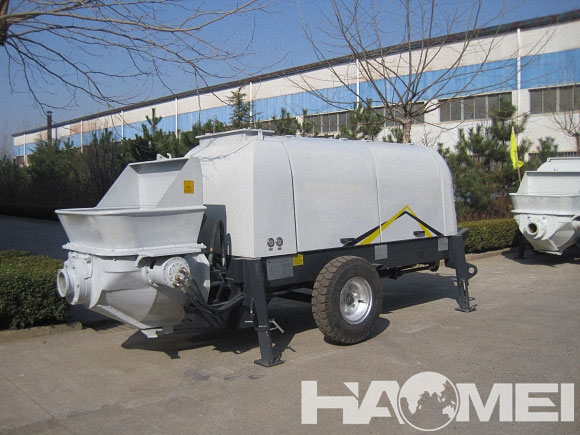

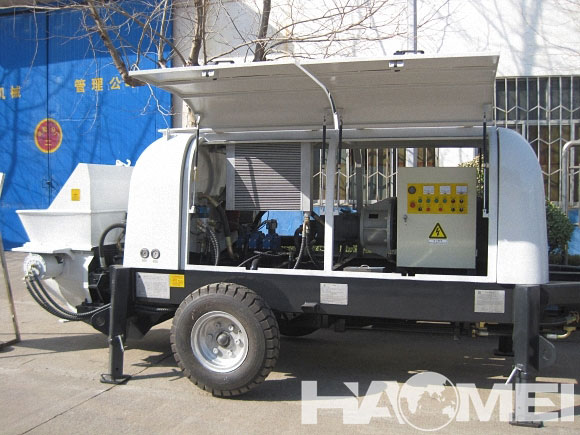

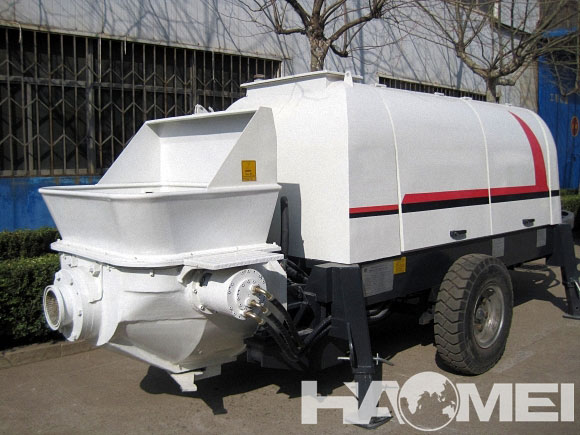

HBT80S1813-110 Trailer Concrete Pump
-
Theory Concrete Output(Low / High Pressure): 85/42m3
-
Concrete Pressure (Low / high pressure): 12.5/5.28Mpa
-
Hydraulic system pressure: 32Mpa
-
Rotation speed: 1480r/min
- Description
- Parameter
- Drawing
- Inquiry
The Description of HBT60S1816-110 Trailer Concrete Pump:
1. The double pump and double loop hydraulic systems, higher reliability, and ease of fault diagnosis and troubleshooting;
2. With safety overflow and over pressure shutoff device automatically to cut off the main pump to get multi-level protection;
3. Swing the oil pump and accumulator constant pressure while oil, greatly reduce the heat of the hydraulic system, along with energy-saving features;
4. Using suction and return oil filter technology to avoid foreign matter from entering the hydraulic circuit to further improve the reliability of the hydraulic system and component life;
5. Pumping the oil using high and low pressure way valve block switch, convenient, reliable, and not oil;
6. Hydraulic oil forced air cooling, ensure that the oil hydraulic system can be controlled at about 60 degrees.
Specification | Unit | Value |
---|---|---|
Theory Concrete Output (Low / High Pressure) |
m3/h | 60 |
Concrete Pressure (Low / high pressure) |
Mpa | 16/95 |
Hydraulic system pressure |
Mpa |
32 |
Rotation speed |
r/min | 1480 |
High / low pressure switch |
/ |
Yes |
Distribution valve |
S |
Valve |
Pumping cylinder diameter/ Stroke |
mm |
195/1500 |
Main oil pump discharge |
ml/r |
110 |
Diesel engine |
kw |
110 |
Voltage/ Frequency |
V/Hz |
380/50 |
Hydraulic tank volume |
L | 400 |
Height of adding material |
mm | 1355 |
Hopper volume |
m3 | 0.8 |
Total mass |
kg | 5800 |
Concrete slump |
mm | 120-230 |
Aclinic Delivery distance |
m | 1200 |
Theory vertical pumping height |
mm | 3225+1350 |
Dimension: L*W*H |
mm |
6240*2110*2550 |
