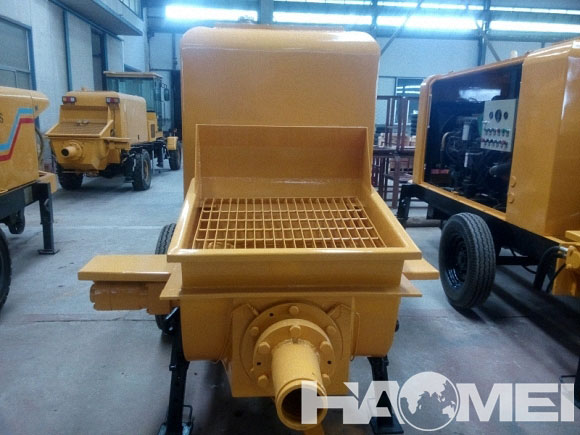

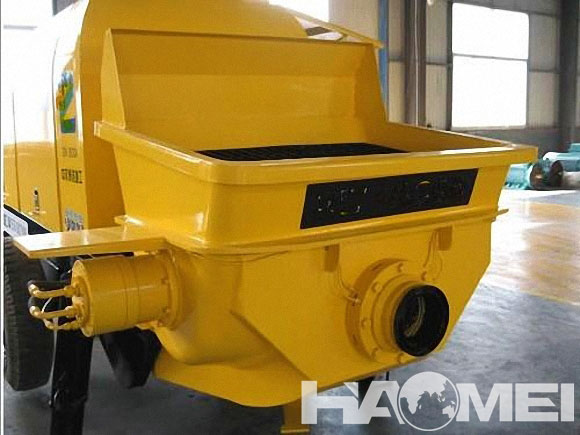

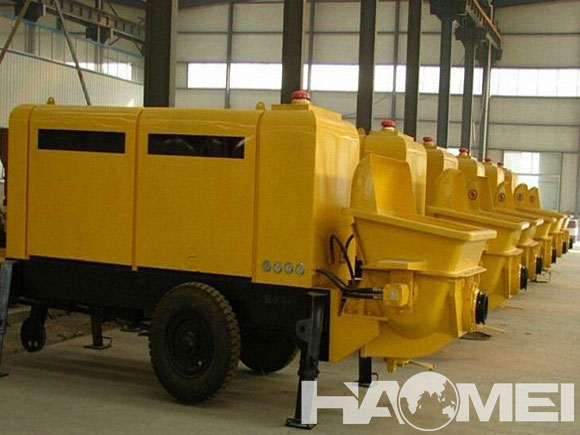

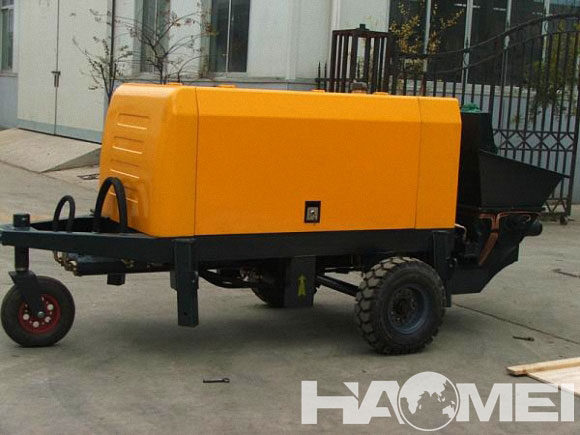

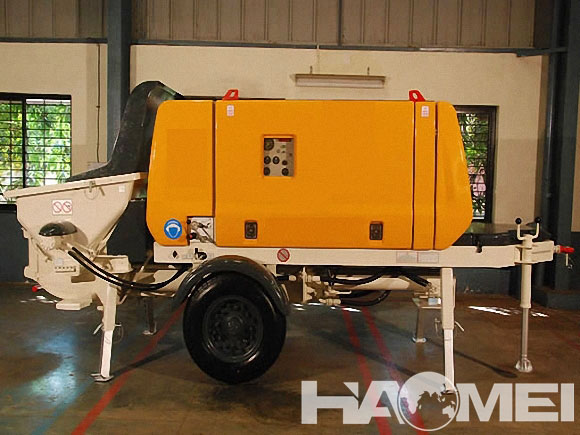

HBT80S1813-145R Trailer Concrete Pump
-
Theory Concrete Output(Low / High Pressure): 85/42m3
-
Concrete Pressure (Low / high pressure): 12.5/5.28Mpa
-
Hydraulic system pressure: 32Mpa
-
Rotation speed: 1480r/min
- Description
- Parameter
- Drawing
- Inquiry
1. The Features of HBT80S1813-145R Trailer Concrete Pump:
1. The perfect combination between new concrete mixing and pumping transportation equipment
2. Reduce the labor troubles
3. Reduce labor intensity, more simple operation and high efficiency
4. Easy hauling, versatile, wide range of applications
5. Outlet pressure, capable of delivering conventional concrete aggregate or gravel
6. Easy to replace parts departments to provide more convenient space for routine maintenance operations
7. Innovative technology and specialized service
8. General application: floor, pouring road scene
Specification | Unit | Value |
---|---|---|
Theory Concrete Output(Low / High Pressure) |
m3/h |
85/42 |
Concrete Pressure (Low / high pressure) |
Mpa |
12.5/5.28 |
Hydraulic system pressure |
Mpa | 32 |
Rotation speed |
r/min | 1480 |
High / low pressure switch |
Yes | |
Distribution valve |
S | Valve |
Pumping cylinder diameter/ Stroke |
mm | 200/1800 |
Main oil pump discharge |
ml/r | 224 |
Diesel engine |
kw | 145 |
Voltage/ Frequency |
V/Hz |
380/50 |
Hydraulic tank volume |
L | 500 |
Height of adding material |
mm | 1400 |
Hopper volume |
m3 | 0.7 |
Total mass |
kg | 6200 |
Concrete slump |
mm |
120-200 |
Aclinic Delivery distance |
m | 1000 |
Theory vertical pumping height |
m | 250 |
Dimension: L*W*H |
mm |
6680*2210*2150 |
