35m3/h Mobile Concrete Batching Plant With Drum Mixer
2025.06.25

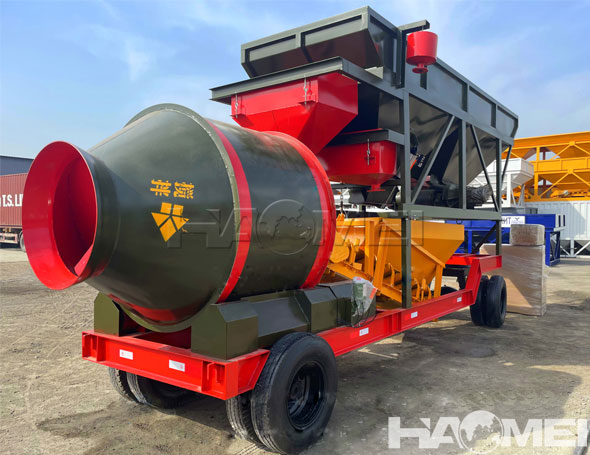

The 35m³/h mobile concrete mixing plant with drum mixer (such as the YHZM750 model) is a highly integrated concrete production equipment designed for mobile construction scenarios. Its core is to integrate the drum mixer (such as the JZM750 model), automatic batching system, metering device, control system and mobile chassis into one, realizing a flexible production mode of "stop and use".
1. High flexibility and rapid deployment
- Easy to move

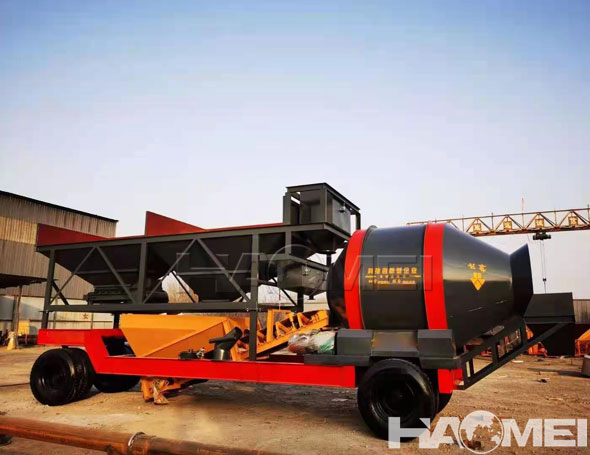

The whole drum mobile concrete batching plant is equipped with a tire chassis (usually 8 tires) and a towing pin, which can be directly towed by a trailer to transfer, with a maximum towing speed of 50 km/h, without disassembling the main components.
- Quick installation
After arriving at the construction site, only a simple ground leveling is required, and no concrete foundation pouring is required. After being fixed by hydraulic legs, it can be put into production on the same day, greatly shortening the construction period (traditional stationary concrete batching plant require several weeks to install).
2. Compact structure and efficient integration
- Integrated design
All processes (aggregate batching, belt conveyor, cement metering, mixing, unloading) are concentrated in a single trailer unit, which reduces the floor space by more than 30% compared with fixed concrete batching plants, and is especially suitable for narrow or temporary construction sites.
- Modular peripherals
Cement silos, screw conveyors and other peripherals can be transported as a whole, and can be quickly connected to the main machine through soft connections to avoid repeated disassembly and assembly.
3. Environmental protection, energy saving and low noise operation
- Advantages of drum mixers
Low noise: The rubber roller friction drive (non-gear drive) is adopted, and the operating noise is reduced by more than 40%, which is suitable for residential areas or night construction.
Low leakage rate: The drum structure has good sealing performance, can handle large-size aggregates without leakage, and reduce material waste.
- Dust removal system
Optional pulse bag dust collector (dust removal efficiency 99.9%) and closed main building design can significantly inhibit dust diffusion.
4. Accurate measurement and stable production
- High-precision weighing system
The measurement accuracy of sand, cement, water and admixtures is ±1%, supporting automatic drop compensation and over-weighing alarm.
The liquid admixture adopts coarse and fine dual measurement mode, and the anti-leakage design ensures the stability of concrete quality.
- Intelligent control
The microcomputer control system has functions such as ratio storage, data cloud synchronization, fault warning, etc., supports full automatic/manual switching, and reduces manual intervention.
5. Economic efficiency and low operating cost
- Low investment cost
No infrastructure construction and no site hardening requirements, saving more than 30% of the station construction cost; the transfer cost is only 20% of the stationary concrete batching plant.
- Easy maintenance
Key components such as mixer wheels and belt rollers adopt modular design (for example, friction plate rubber-coated rollers support 30 minutes of quick replacement) to reduce downtime.
- Energy consumption optimization
The power of the whole concrete batching plant is about 27.1KW (excluding external spiral), which is 15-20% lower than the energy consumption of the same output forced type concrete batching plant.
6. Widely applicable scenarios
- Dispersed projects:
Scenarios that require frequent movement, such as highway maintenance, small bridges, and water conservancy construction sites.
- Resource-limited areas:
When there is no power supply, it can be modified to drive with a diesel engine (patented technology) to adapt to environments such as Africa and remote mountainous areas.
- Environmentally strictly controlled areas:
Low noise and dust removal design meet the construction requirements of urban residential areas and ecological protection areas.
The core competitiveness of the 35m³/h mobile concrete batching plant with drum mixer lies in: taking mobility as the core, integrating the low noise durability of the drum mixer with the precise control capability of the fully automatic station, and reducing the full life cycle cost through modular design. It is especially suitable for small and medium-sized projects (such as county and township roads, prefabricated component plants) and environmentally sensitive areas, providing cost-effective concrete production solutions for decentralized construction.
