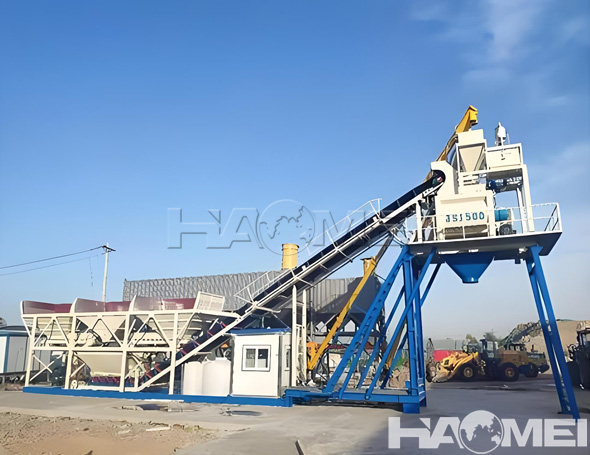

Foundation Free Concrete Batching Plant
2026.06.03
In infrastructure projects, limited space, tight schedules, frequent relocation, and high civil engineering costs are common challenges. Traditional stationary concrete batching plants rely on high-strength concrete foundations, resulting in long construction cycles, large upfront investments, and high relocation costs, making them unsuitable for short-term projects, linear projects, and temporary construction scenarios. Addressing the differentiated needs of overseas markets, Haomei Machinery has launched its foundation free concrete batching plants. With its modular steel chassis, zero civil engineering deployment, and high mobility and adaptability, it has become the preferred equipment for small and medium-sized overseas projects and phased construction projects.
Unlike traditional concrete batching plant equipment, the biggest core advantage of foundation free concrete batching plant is that it requires no dedicated concrete foundation. The foundation free concrete batching plant equipment is equipped with an integrated heavy-duty steel chassis, mechanically reinforced for uniform stress distribution and high stability. It can be quickly installed and put into operation on only a leveled and compacted hardened or gravel surface. Compared to traditional stationary concrete batching plants, this system eliminates 100% of the basic civil engineering work, shortens the equipment installation cycle by over 60%, and significantly mitigates pain points such as material shortages, high labor costs, and cumbersome approval processes at overseas construction sites.
The capacity range covers all mainstream export models, with parameters precisely adapted to international construction requirements. The flagship model, the MHZS25-MHZS90, requires no foundation, with theoretical outputs ranging from 25m³/h to 90m³/h, catering to different construction scales. All models are equipped with a twin-shaft forced concrete mixer, with a standard mixing cycle controlled within 65-72 seconds, ensuring high material uniformity. A high-precision independent weighing system is used, with aggregate metering errors ≤±2% and cement, water, and admixture metering errors ≤±1%, fully complying with international concrete construction quality standards and guaranteeing the stability of the finished concrete.
The structural design balances stability and portability, perfectly adapting to various overseas operating scenarios. The foundation free concrete batching plant equipment adopts an integrated modular structure, resulting in a compact machine with a high pre-assembly rate. It can be disassembled for standard container transport, reducing ocean freight logistics costs. Designed for harsh overseas environments with sandstorms, high temperatures, and open-air operation, the equipment chassis undergoes anti-corrosion and rust-proof treatment. Core operating components are equipped with dustproof, leak-proof, and protective devices, effectively reducing the probability of failure under severe conditions. The overall equipment uptime reaches over 95%. Simultaneously, the flat belt conveyor structure eliminates material leakage and jamming issues, reducing material loss and on-site cleaning costs.
High reusability and low cost advantages continuously generate revenue for overseas customers. Traditional concrete batching plants are highly fixed, resulting in extremely high costs for equipment relocation and dismantling after project completion, and the foundation cannot be reused. Haomei's foundation-free concrete batching plant, however, can be quickly dismantled and relocated as a whole, supporting multiple projects for repeated use, significantly improving equipment utilization. Actual testing shows that the entire set of equipment can help customers save over 30% in upfront costs for civil engineering, labor, construction period, and logistics, demonstrating a significant cost-performance advantage.
Leveraging a mature export support system, foundation free concrete batching plant equipment has obtained CE international certification and is compatible with construction standards in many countries worldwide. From site surveys, rapid installation guidance, and personnel training to overseas after-sales maintenance and original parts supply, we provide one-stop foreign trade services. With no infrastructure required, rapid commissioning, flexible relocation, and stable production, Haomei's foundation-free concrete batching plant precisely addresses the core pain points of overseas temporary construction, linear projects, and multi-site operations through its differentiated product advantages.
