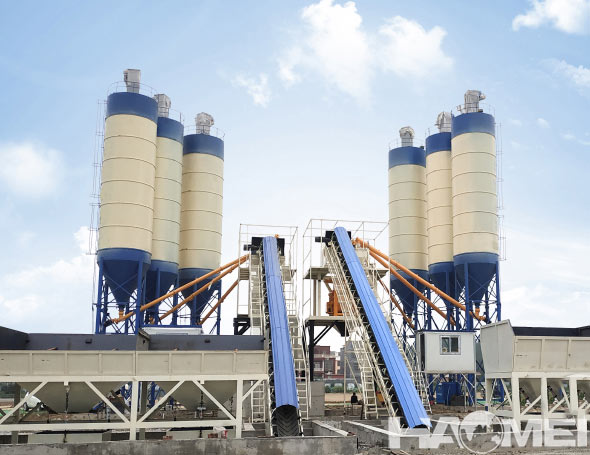

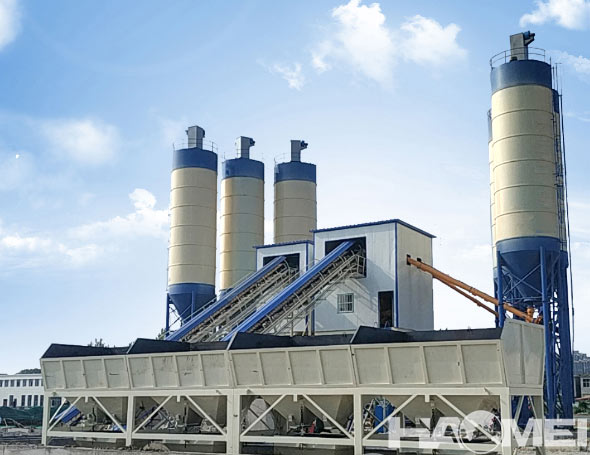

PLC Controlled Concrete Batching Plants
2026.07.08
Many purchasers equate PLC controlled concrete batching plants with simply an upgrade to "automated operation," overlooking the fact that this system is essentially the core of the entire concrete batching plant's production decision-making. It replaces the traditional extensive mode of relay control and manual operation, using millisecond-level precise control throughout the entire process of metering, mixing, and conveying, fundamentally improving quality stability, production efficiency, and operational controllability. Haomei Machinery's HZS series concrete batching plants are all equipped with industrial-grade PLC control systems, supported by this core control system, adapting to the refined production needs of overseas commercial concrete and large-scale projects.
The order-of-magnitude improvement in metering accuracy is the most fundamental value of a PLC control system. In traditional manual or relay control modes, material weighing relies on manual readings and manual valve control, which is greatly affected by operator skill. Aggregate metering errors are generally above ±3%, and the deviations for powder and admixtures are even higher, directly leading to large batch strength dispersion and a high rate of defective products in concrete. Haomei employs an industrial-grade PLC control system equipped with a 10ms-level high-speed weighing sampling module and a dynamic drop compensation algorithm. This system can correct the timing of the feed valve closure in real time during the batching process, ultimately achieving a stable aggregate metering error of ≤±2% and cement, water, and admixture metering errors of ≤±1%, fully complying with IEC 60335 industrial metrology standards and EN 206 concrete construction specifications. The system supports automatic calibration for each batch, maintaining stable accuracy even during long-term operation. Actual measurements show that the standard deviation of the 28-day compressive strength of C30-C50 grade concrete produced can be controlled within 3.0MPa, reducing the defect rate by more than 50% compared to manual control, thus minimizing material waste and quality compensation risks at the source.
The entire process is coordinated and scheduled, further releasing the equipment's production capacity potential. The PLC system not only manages the metering stage but also links all workstations—batching, conveying, mixing, and unloading—precisely matching the rhythm of each stage through preset logic, eliminating waiting time caused by manual operation. Taking the HZS90 concrete batching plant as an example, the actual production rate under traditional manual operation is approximately 70%-75%. After installing a PLC control system, the entire process—parallel aggregate batching in four bins, continuous belt conveying, timed mixing by the main unit, and automatic unloading—operates in a closed loop, stabilizing the actual production rate at 85%-90%, increasing the unit capacity by about 15% under the same operating conditions. Simultaneously, the system can collect over 20 core operating parameters in real time, including main unit current, bearing temperature, and belt speed, providing early warnings for abnormal conditions and reducing troubleshooting time from an average of 4 hours to less than 30 minutes. The annual equipment uptime can be increased to over 95%. All production data is automatically stored and archived, and the proportions, output, and energy consumption of each batch are traceable, perfectly adapting to the quality management and cost accounting needs of commercial concrete plants.
For overseas export scenarios, PLC control system has also been specifically optimized. The system supports multiple language interfaces, including English, Spanish, and Arabic, with a clear visual touch operation logic. Ordinary workers can operate it independently after simple training, significantly reducing the reliance on professional technicians in overseas markets. Optional remote communication modules are available, enabling the Haomei technical team to remotely perform program debugging, fault diagnosis, and parameter optimization, eliminating the need for engineers to travel to the site and significantly shortening after-sales response times and reducing service costs. The system boasts excellent functional scalability, seamlessly integrating with modules such as environmental monitoring, commercial concrete ERP management, and dust control without requiring a complete control system replacement, thus adapting to customers' long-term operational upgrade needs.
Essentially, PLC control system is not merely an added bonus for a concrete batching plant, but a core component in the shift from extensive to intensive modern concrete production. For contractors and commercial concrete operators, choosing a Haomei PLC controlled concrete batching plant offers more than just operational automation; it provides full-cycle value in terms of stable quality, increased production efficiency, and reduced maintenance costs, ensuring reliable productivity throughout long-term operations.
