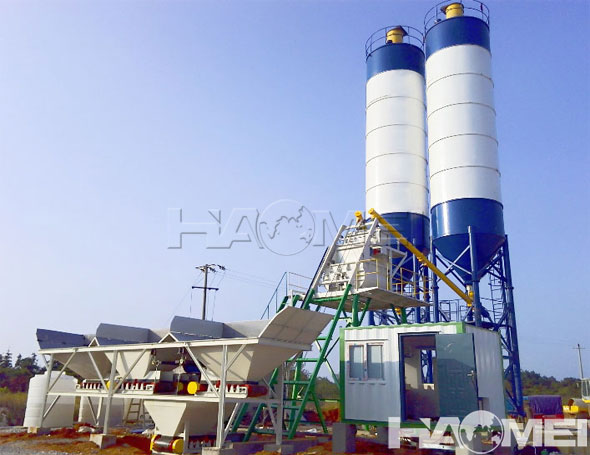

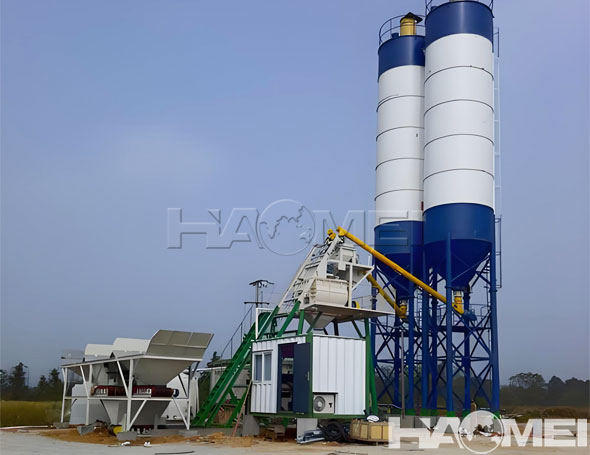

Hopper Lift Concrete Batching Plants
2025.05.14
Hopper lift concrete batching plant is a kind of equipment for producing concrete, which is mainly used in construction sites, prefabricated component factories and other places. Its main feature is the automatic supply and mixing of raw materials (such as cement, sand, stone, etc.) through the hopper lifting system. The output models of hopper batching plant are usually distinguished by the concrete production capacity per hour, and the common models include HZS25, HZS35, HZS50, HZS60, HZS75, HZS90, HZS120 and HZS180, and the numbers indicate the number of cubic meters of concrete that can be produced per hour, and the users can choose the suitable model according to the scale of the project and the demand.
Hopper lift concrete batching plant is mainly composed of the following core components:
- Lifting hopper system: including hopper, rail, winch, wire rope, etc. The hopper is driven by the winch to lift vertically along the rail to complete the lifting and feeding of aggregates.
- Mixing machine: JS series horizontal twin shaft forced concrete mixer is mostly used, such as JS500, JS1500, etc., which is characterized by high mixing efficiency and good uniformity.
- Batching system: It contains PLD series concrete batching machine, which accurately measures aggregate, cement, water, admixture and other materials through electronic scale, with an accuracy of ±1%~±2%.
- Control system: adopts intelligent electronic control, supports automatic/manual switching, with fault diagnosis and dynamic production monitoring function.
- Auxiliary equipment: including cement silo, screw conveyor, dust removal device, etc., to realize fully enclosed production to reduce dust pollution.
Working Principle of hopper lift concrete batching plant:
- Aggregate lifting: the hopper is lifted vertically along the track by the winch to the top of the concrete mixer to complete the feeding of aggregate .
- Batching and measuring: the batching machine weighs the aggregate, powder (cement, fly ash), water and additives automatically according to the preset ratio, and conveys them to the mixer through belt or screw.
- Mixing and discharging: the concrete mixing machine mixes the materials forcibly and outputs the finished concrete through the discharging gate, the discharging height is usually 3.8~4.1 meters, which is suitable for different transportation vehicles.
Core advantages of Haomei Machinery’s hopper lift concrete batching plant:
- Small footprint: modular design, convenient installation and transfer, especially suitable for projects with limited space.
- Low investment cost: Compared with belt conveyor concrete batching plant, hopper elevator does not require long belt conveyor, reducing initial investment by 30%~50%.
- Environmental protection and high efficiency: fully enclosed structure with dust removal system reduces dust emission by more than 80%; intelligent control improves production efficiency.
- Strong adaptability: it can produce dry hard and plastic concrete, and is suitable for aggregates with sand and gravel particle size ≤80mm.
Hopper lift concrete batching plant is widely used in all kinds of construction projects, infrastructure construction, road construction and the production of prefabricated components and other fields, and can meet the needs of large-scale concrete production.
