High Efficiency Large Capacity Concrete Batching Plants

 2026.05.20

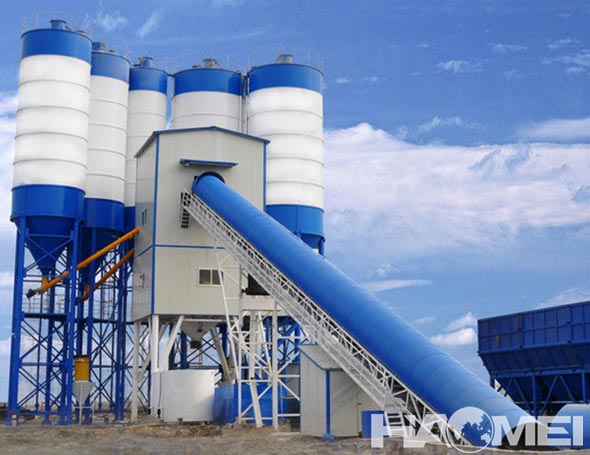

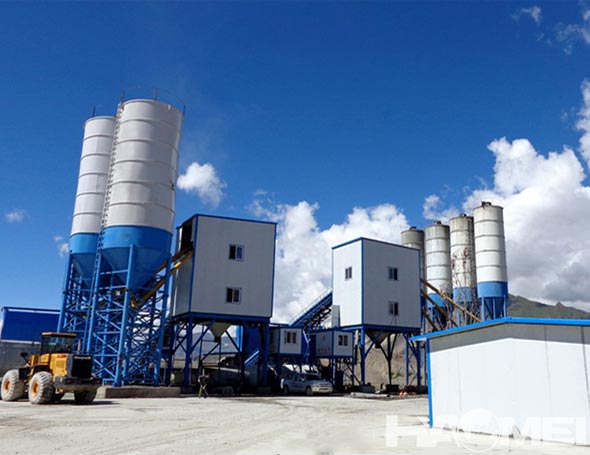

HAOMEI MACHINERY, a benchmark enterprise deeply involved in the manufacturing and export of concrete mixing equipment, offers large capacity concrete batching plants (HZS series) specifically designed for large-scale construction scenarios such as large-scale infrastructure projects and commercial concrete production. These concrete batching plants are core equipment for achieving efficient, precise, and stable concrete supply. The product line centers on four main models: HZS90, HZS120, HZS150, and HZS180, covering a theoretical production rate of 90-180 m³/h. Suitable for large-scale engineering projects with concrete volumes of 200,000 cubic meters and above, these plants are widely used in high-speed rail, bridges, airports, large residential communities, and commercial concrete batching plants, perfectly meeting the dual demands of large-scale construction for both concrete output and quality.





HAOMEI large capacity concrete batching plants adopt a modular assembly design, consisting of five core modules: a supply and storage system, a batching system, a mixing system, a control system, and an auxiliary environmental protection system. These modules work collaboratively to achieve full automation of the concrete production process.
The supply and storage system is equipped with enclosed sand and gravel silos and large cement silos. The sand and gravel silos adopt a zoned design, which can simultaneously store 3-4 kinds of aggregates with different particle sizes. The cement silos are equipped with material level indicators and pulse dust collectors to effectively prevent dust leakage and monitor material levels in real time.
The batching system uses PLD series batching machines with high-precision sensors to accurately measure raw materials such as sand, gravel, cement, fly ash, and admixtures.
The core of the mixing system is a JS series twin-shaft forced concrete mixer, which has high mixing uniformity and outstanding efficiency. The HZS180 concrete batching plant is equipped with a JS4000 main unit, with a single mixing capacity of 4m³, and can complete a mixing cycle in 30-60 seconds.
The control system adopts a PLC intelligent control system to realize the full-process automated control of batching, mixing, and discharging. It can monitor the equipment operating status in real time, supports parameter adjustment and fault warning, and is convenient and easy to operate.

Leveraging over 30 years of manufacturing experience and export expertise, HAOMEI's large capacity concrete batching plants boast outstanding product advantages. Compared to competitors, they possess core competitiveness in efficiency, precision, durability, and service, comprehensively meeting the stringent requirements of large-scale projects.
In terms of production efficiency, the equipment adopts a modular design, with an installation cycle of only 7-10 days, 30% shorter than the industry average. The HZS180 model has a theoretical production rate of 180 m³/h, exhibiting strong continuous operation stability and meeting the 24-hour uninterrupted production needs of large-scale projects, significantly shortening the construction cycle.
Regarding quality and precision, core components utilize high-quality materials. The wear-resistant lining of the mixing unit undergoes special processing, extending its service life by 15% compared to the industry average. The metering system's accuracy is controlled within ±1%-±2%, far exceeding industry standards, ensuring precise concrete proportions and consistent strength, slump, and other indicators. It can produce various specifications of products, including ordinary concrete and specialty concrete.
In terms of environmental protection and energy conservation, the equipment is equipped with a fully enclosed silo, a pulse dust removal system, and a wastewater recovery device. Dust emissions are consistently below 10mg/m³, and noise levels are controlled below 70dB, meeting environmental standards worldwide. Simultaneously, the optimized power system reduces energy consumption by 10% compared to traditional equipment, achieving green and efficient production.
Furthermore, we offer installation and commissioning, operation training, and dedicated spare parts supply services, completely eliminating concerns about overseas maintenance of large-scale equipment. With stable product performance and attentive service, our products are exported to over 30 countries and regions worldwide, gaining high recognition from global customers.

HAOMEI HZS series large capacity concrete batching plants, with their scientific structural design, precise performance parameters, and outstanding product advantages, have become the core equipment choice for large-scale infrastructure projects. They not only meet the high-efficiency requirements of large-scale production but also take into account quality, environmental protection, and ease of operation and maintenance. Leveraging over 30 years of manufacturing experience and export expertise, HAOMEI consistently optimizes the performance and service of its large-scale concrete batching plants with a professional and rigorous approach, empowering large-scale infrastructure projects worldwide. With the strength of "Made in China," HAOMEI conveys its quality and commitment.
