Basic Composition of Batching Plant Indonesia


Batching Plant Indonesia is mainly composed of 5 main systems, such as console mixing, weighing system, conveying system, storage system and control system.

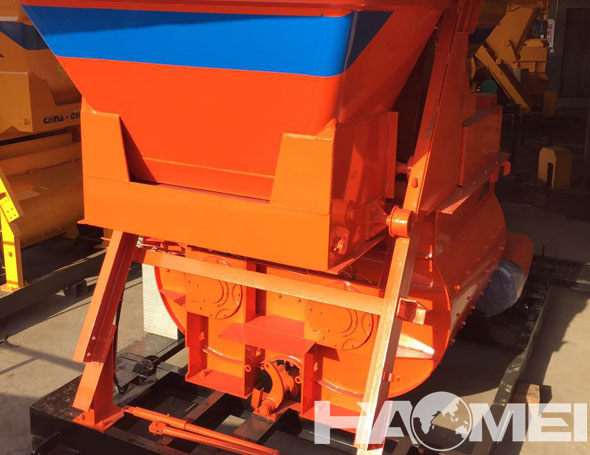

1. Console Mixing
Compulsory concrete mixer is widely used in the construction market at home and abroad, which can mix concrete, such as flow, semi drying and drying. Compulsory concrete mixer can be divided into planetary concrete mixer, single horizontal shaft mixer and twin shaft concrete mixer. The comprehensive performance of twin shaft compulsory mixer is the best.
2. Weighing system
Weighing system is the key component that affects the quality of concrete and the cost of concrete production. It is mainly divided into three parts: aggregate weighing, powder weighing and liquid weighing. In general, The production of below 20 cubic meters per hour Batching Plant Indonesia adopts the cumulative weighing method. And the Batching Plant Indonesia production more than 50 cubic meters per hour, weighing method adopts individual weighing scale. Weighing method adopts the electronic scales and microcomputer control.

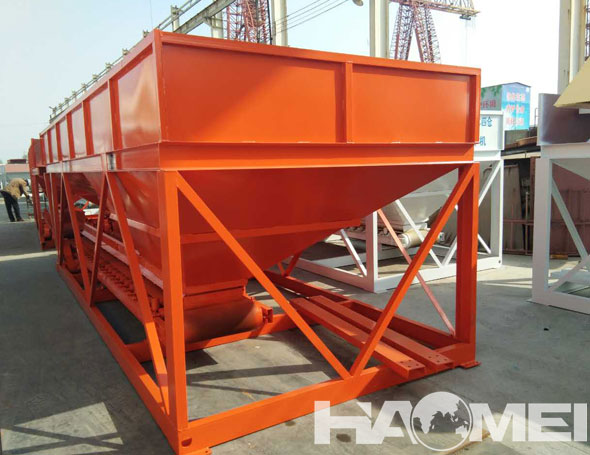

3. Material Transporting System
Material transporting system can be divided into three parts. Aggregate transportation: there are two ways of transporting system, including hopper conveying and belt conveying. Hopper conveying features small footprint and simple structure. Belt conveyor has the advantages of large conveying distance, high efficiency and low failure rate. Belt conveyor is mainly suitable for large mixing plant with storage silo, so as to improve the productivity of mixing station. Powder conveying: main powder including cement, fly ash and mineral powder. Powder conveying method adopts screw conveyor. The advantages of screw conveying are simple structure, low cost and reliable performance.

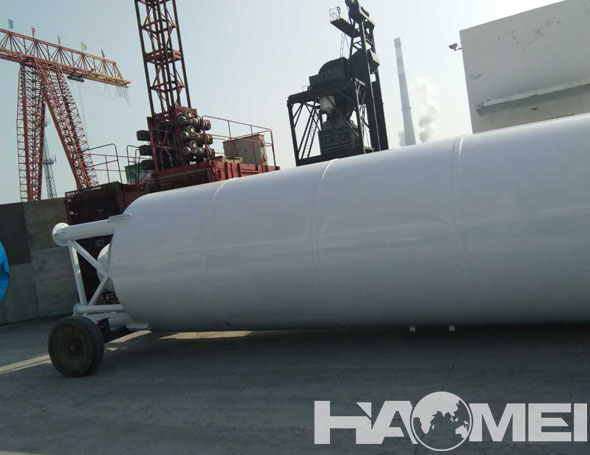

4. Material storage system
The aggregate is stored in an open space; The powder is stored in a fully enclosed steel silo; the admixture is stored in steel structural containers.

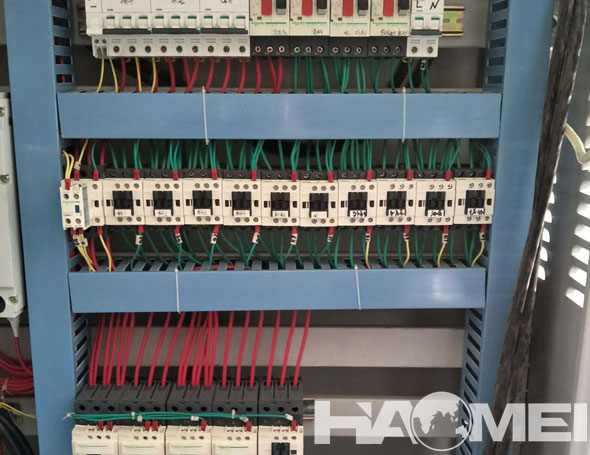

5. Control system
The control system is the core of whole set of Batching Plant Indonesia. The control system has different functions and preparation according to the user's different requirements and the size of the mixing station.
