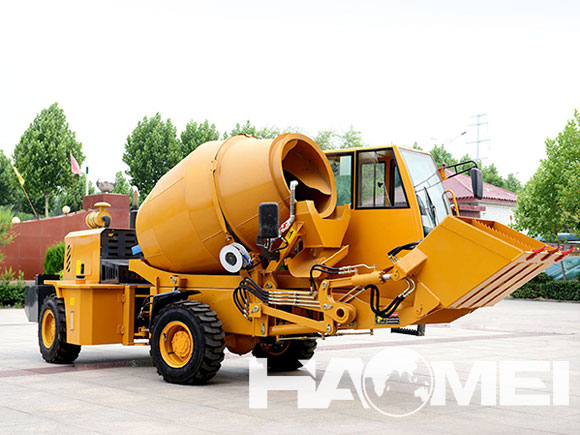

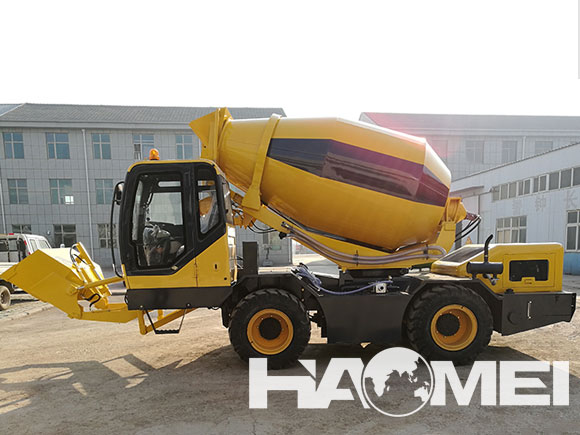

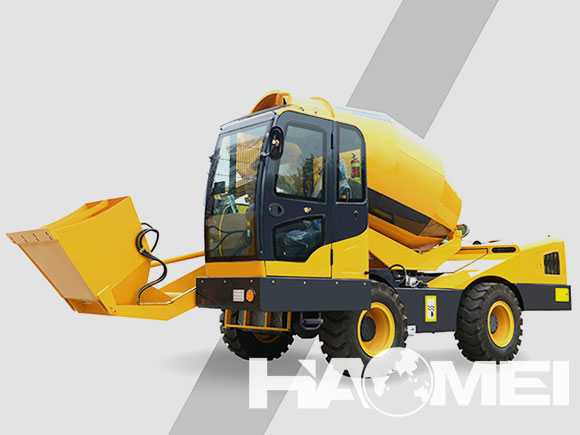

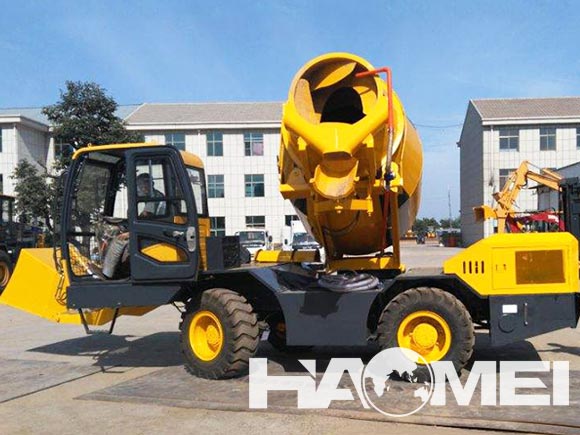

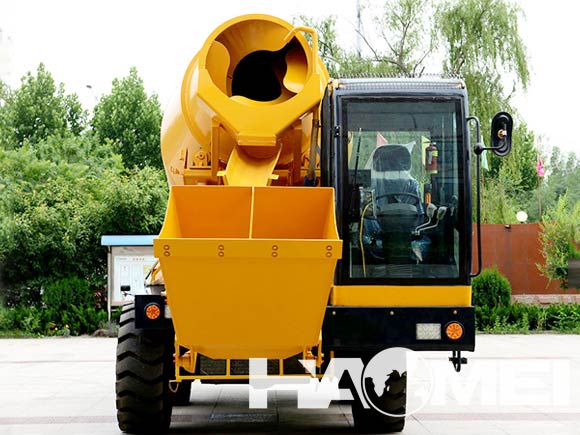

Self Loading Concrete Mixer 5.5 Cubic

  •

    Production Capacity: 5.5 Cubic Meter/Drum

  •

    Rated Power:85 Kw

  •

    Fuel Tank: 180 L

  •

    Water Tank: 860 L

Share with:
  • Product Details
  • Configuration and Drawing
  • Technical Features
  • Inquiry
Self loading concrete mixers are unique machines designed to batch, mix and transport concrete. They consist of a rotating drum mounted on an operator-driven cab-mounted chassis frame fitted with a loading bucket.The operator of the self loading mixer machine batches and introduces the ingredients required for mixing concrete (cement, stone aggregates etc.) into the drum using the loading bucket. The drum is usually reversible type, tilt type or a combination of both. A predetermined volume of water is discharged to the drum via a water dispensing unit. The mixture is rotated at mixing speeds within the drum until the concrete discharges via a fitted chute.

High Lights Of Haomei Self Loading Mixer Machine


1.At least 5 workloads are saved a day;
2.At least save electricity of 100 degree without using a concrete mixer;
3.Flexible and strong firm off-road chassis;
4.No need of a wheel loader;
5.No need of a concrete truck;
6.12-15 minutes complete one batch;
7.270 degree can spread concrete out on the surface of ground.

Haomei Service of self loading mixer truck


Haomei has more than 35 years, keeping to pay attention on the customer at the first place service principle, we have paid much attention on the service and customer relationship. after accumulating rich experience of manufacturing, selling and servicing for many decades, in order to supply better service for customers, till 2018, we have built more than 6 sub offices in 6 countries, such as, Uzbekistan, Pakistan, Sir Lanka, Philippines, Russia, Indonesia, we will set up more in the future. So, never worry about the service of after sale, you can find us any time!


The performance parameters

5.5 Cubic Meter

270°Self Loading Concrete Mixer

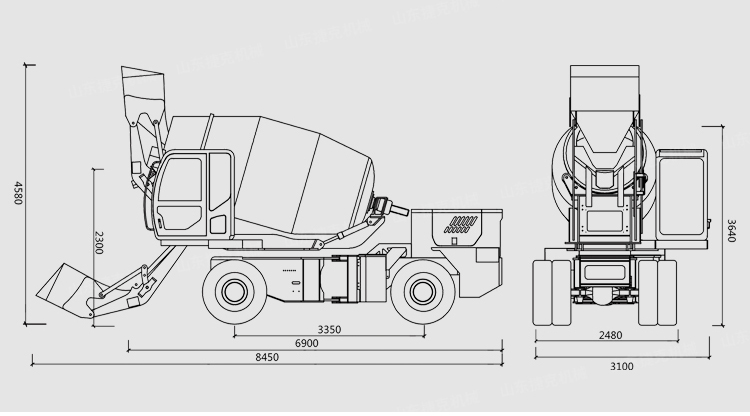

Overall Dimensions(L*W*H)mm

8450x3100x4580

Total Weight

11200kg

Drum Capacity

7800L

Production Capacity

5.5Cubic Meter/Drum

Drum rotation speed

20rpm

Hydraulic Motor

SUNNY56

Engine Model

FAW XICHAI 6110 Turbo-Charged 6110

Rated Power

85kw

Max. climbing degree

45°

Max. speed

42km/h

Min. ground clearance

380mm

Min. turning radius

6200mm

Front and rear wheelbase

3350mm

Left and right track

2480mm

Water Tank

860L

Fuel Tank

180L

Fuel consumption L / h

15.84

Sand feeding time (minutes / tank)

10

Gear

2 Forward 2 Back, Front Wheels Steering

self loading mixer machine price

1. Shot blasting machine


When the elements are moved in to the machine, thousands of the little steel balls will heat on the surface of elements. Then the surface will become uneven, and it will increase the adhesive force. So it will ensure good painting.


ajax fiori argo 4000


2. Robot welding


Here are advanced technology of welding robots, which ensures high working efficiency and high accuracy


ajax fiori argo 4000 price


3. Closed painting room


In order to assure good painting and environmental protection, here is closed painting room. The machine will be shinning even after long time use. Moreover, we can also meet the environmental standards, so that we can manufacturer and delivery the equipment for our customers on time.


ajax fiori concrete mixer


4. Sufficient elements stored


Here are sufficient elements stored in our factory, which ensures short delivery time. Meanwhile, we have ability to accept big orders from our customers.


ajax self loading concrete mixer price


5. Strict quality inspection


Here are quality inspection department, and strict inspection guarantees that the unqualitified equipment will be reworked and will not be delivered to our customers.


ajax fiori 2000 price


6. Test run


Here are wide areas for our customers to test the self loading concrete mixer truck, and welcome to test the self loading mixer truck in our factory. Driving, feeding, mixing, discharging and climbing are available.


schwing stetter slm 4000
