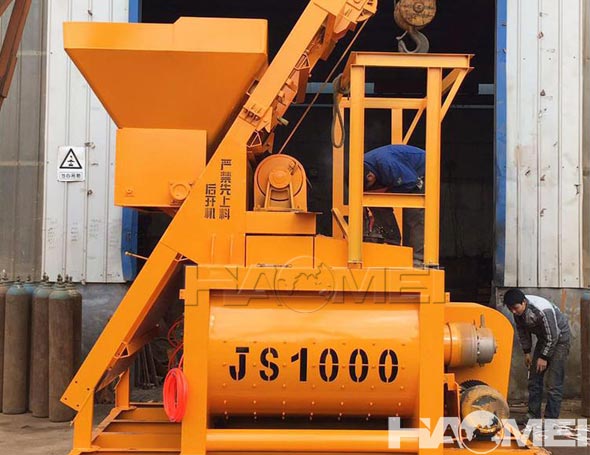

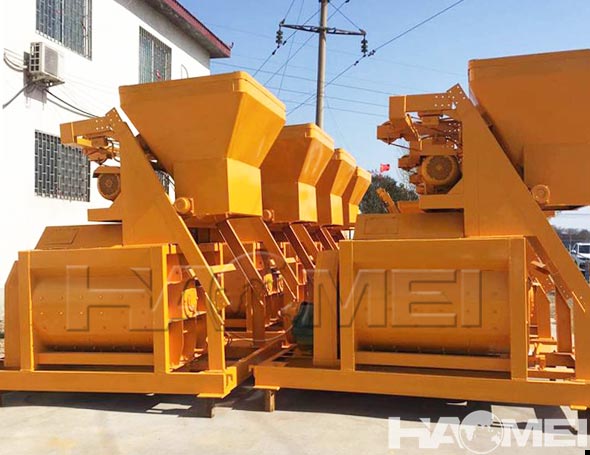

Medium Concrete Mixer JS1000


The models of medium concrete mixer in Haomei Machinery are JS750, JS1000 and JS1500, they are all twin shaft concrete mixer. Among the medium model concrete mixers,the JS1000 forced concrete mixer is favorite by customers. The JS1000 concrete mixer also known as 1 cubic meter concrete mixer, belongs to the twin-shaft forced concrete mixer series, with a theoretical productivity of 60m³/h per hour. The JS1000 twin shaft concrete mixer have advantages of high automation, good mixing quality, high efficiency, low energy consumption, low noise, convenient operation, fast unloading speed, long service life of liner and blade, convenient maintenance and so on.

medium concrete mixer medium model concrete mixer

The quality, price, and craftsmanship of medium concrete mixers produced by different manufacturers are different. Features of the JS1000 concrete mixer made by the Haomei Machinery concrete mixer manufacturer are:
1, The electric lubricating oil pump can use secondary or tertiary lubricating oil to make shaft end seal better and more fuel-efficient.
2, A variety of stirring blade angles can meet any needs of customers, with higher stirring efficiency.
3, The slump of concrete in the concrete mixer can be monitored and changed at any time, providing a guarantee for users to produce high-quality concrete;
4, The scientific design concept and reliable experimental data reduce the friction and impact of the material, the material flow is more reasonable, the mixing time is greatly shortened, the mixing efficiency is improved, and the mixing energy consumption is reduced.
5, The wearing parts of the JS1000 concrete mixer are made of high wear-resistant alloy cast iron, the mixing drum is thickened, and the integrally cast spiral mixing arm has high strength, wear resistance and low resistance.
6, The concrete mixer machine uses hydraulic door opening for unloading, which can not only unload the concrete smoothly during the mixing process, but also avoid the overturning of the cylinder. A limit switch is installed on the left and right above the discharge door to control the opening and closing position, and the sealing performance of the discharge door can be ensured by adjusting the position of the sealing strip.
7, The reducer and main shaft of the JS1000 forced concrete mixer are directly driven by a coupling, which has the advantages of long service life, high mechanical efficiency, low noise, and strong impact resistance.
8, The joint between the mixing shaft and the two ends of the mixing drum is equipped with a special sealing device, and the end of the mixing drum is equipped with a special oil feeder to ensure the sealing quality.
9, The water supply system of the js1000 concrete mixer is composed of a motor, a water pump, a throttle valve, a cleaning device, and a spray pipe. The water needed for mixing concrete is sent to the nozzle by the water pump through the throttle valve, and the throttle valve can adjust the water-saving flow.
10, The electrical control circuit of the JS1000 medium concrete mixer is equipped with an air switch, a fuse and a thermal relay, which has the functions of short-circuit protection and overload protection. All control buttons, air switch handles and indicator lights are installed on the door of the distribution box with a door lock. There is a small protective door outside the button.
